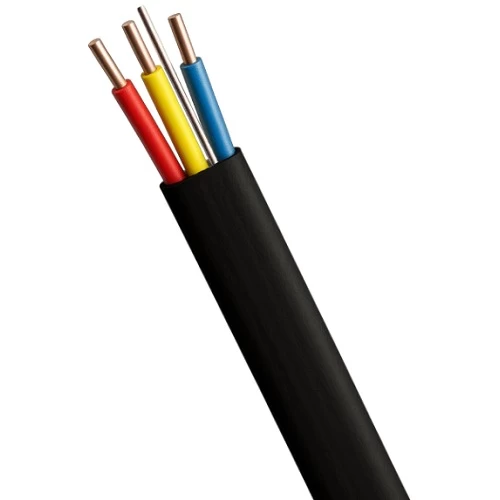

Stranded Copper Cable 3 Core 1.5 sq mm, 300/500 volts, Flat and Earth Solid Conductor, PVC 70°C Insulation, Black Sheath, 100 M/Drum | Saudi Cable Company

Solid copper flat cable (CU/PVC/PVC), 3 core, 1.5mm², 300/500V, black sheath, 70°C insulation, 100m. By Saudi Cable Company. Moisture-resistant for both dry and humid location installations

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5mm2
• Number of Wires: 1
• Earth Continuity Conductor (no.xmm): 1×1.13 mm
• Nominal Insulation Thickness: 0.7 mm
• Nominal Sheath Thickness: 0.9 mm
• Overall Diameter: 12.5×5.4mm
• Weight: 105 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red & Yellow & Blue)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABG3-04H
