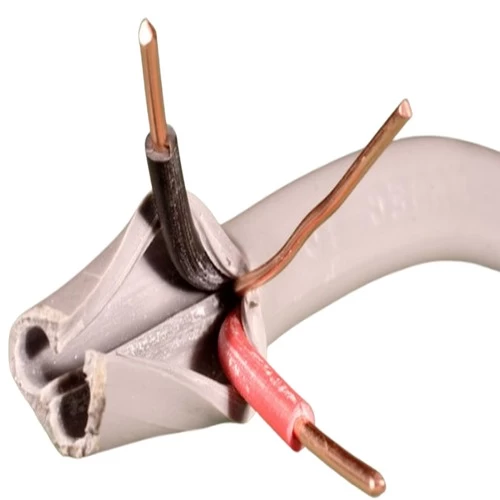

Stranded Copper Cable 2 Core 6mm Flat Twin and Earth, 300/500 Volts, PVC Insulated and Sheathed | Riyadh Cables
Two core stranded electrical copper cable (CU/PVC/PVC), 6 mm2 cross-sectional area, 300/500V, insulation color is red and black, used to supply power for various domestic and industrial electrical applications, produced by Riyadh Cables Company.
- Conductor: Copper
- Conductor Shape: Stranded as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 6 mm
- Number of Wires: 7
- Insulation Thickness: 0.8 mm
- Sheath Thickness: 1.1 mm
- Overall Diameter or Dimensions: Lower Limit 6.4 x 12.5 mm / Upper Limit 8 x 15 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Weight: 240 kg/km
- Insulation Color: (Red, Black)
- Sheath Color: Gray
- Standard: BS 6004
Contact Us
Related products
Stranded Copper Cable 2 Core 6mm Flat Twin and Earth, 300/500 Volts, PVC Insulated and Sheathed | Riyadh Cables
Two core stranded electrical copper cable (CU/PVC/PVC), 6 mm2 cross-sectional area, 300/500V, produced in accordance with British Standard, insulation color is brown and blue, used to supply power for various electrical applications, produced by Riyadh Cables Company.
- Conductor: Copper
- Conductor Shape: Stranded as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 6 mm
- Number of Wires: 7
- Insulation Thickness: 0.8 mm
- Sheath Thickness: 1.1 mm
- Overall Diameter or Dimensions: Lower Limit 6.4 x 12.5 mm / Upper Limit 8 x 15 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Weight: 240 kg/km
- Insulation Color: (Brown, Blue)
- Sheath Color: Gray
- Standard: BS 6004
