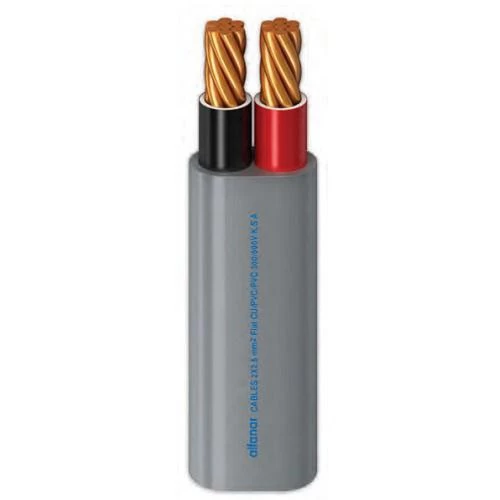

Stranded Copper Cable 2 Core 6mm Flat, Cross Section, 300/500 volts, PVC Insulated and Sheathed | Alfanar

Stranded copper flat cable 6 mm2 cross section two core, 300/500 volts, PVC insulated and sheathed, insulation color (red, black), due to its flat shape, it occupies less space when installed on the exterior or interior walls of buildings, from Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires: 7
• Wire Diameter: 1.04 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 1.1 mm
• Approx. Overall Diameter: 6.9 × 11.6 mm
• Weight: 210 kg/km
• Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
• Insulation Color: (Red, Black)
• Standard: BS 6004
