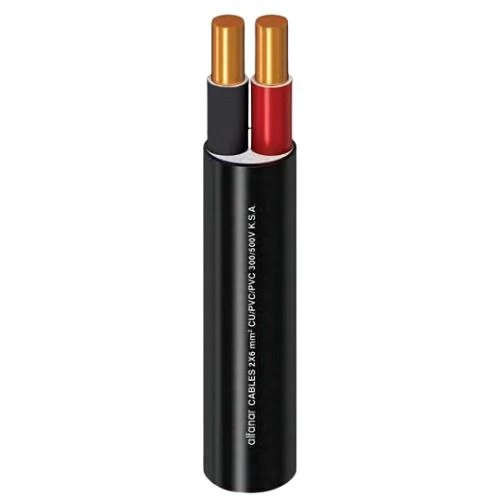

Stranded Copper Cable 2 Core 6mm, 300/500 Rated Voltage, Solid, Size, PVC Insulation, PVC Sheath | Alfanar

Solid electrical copper cable tow core (CU/PVC/PVC), 6 mm2 cross-sectional area, 300/500V, phase core colors (red, black), the outer jacket (PVC) provides protection for the cable from corrosion and external factors, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-U)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires: 1
• Wire Diameter: 2.76 mm
• Nominal Insulation Thickness: 0.8
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 11.9 mm
• Weight: 265 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Black)
• Standard: IEC 60227-4
