Stranded Copper Cable 2 Core 6 sq mm Size, 300/500 Voltage Rating, PVC Insulation, PVC Sheathed | Riyadh Cables

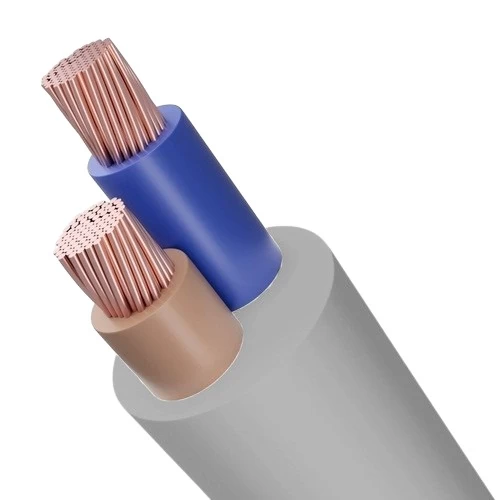

2 core stranded copper cable, 6mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is brown and light blue, produced by Riyadh Cables Company, where the outer jacket provides protection for the cable from corrosion and external factors.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 6 mm
• Number of Wires: 7
• Approx Conductor Diameter: 3.12 mm
• Insulation Thickness: 0.8
• Sheath Thickness: 1.2 mm
• Overall Diameter: 14 mm
• Weight: 280 kg/km
• Max DC Conductor Resistance at 20°C: 3.08 ohm/km
• Standard Packing Length: 100 meter coil
• Insulation Color: (Brown, Light Blue)
• Outer Sheath Color: Gray
• Standards: IEC 60502, SSA 1450
