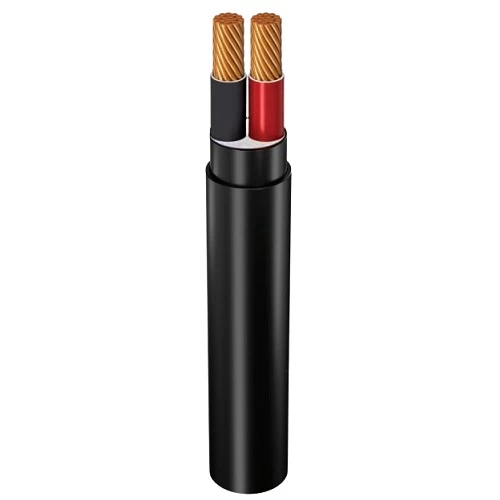

Stranded Copper Cable 2 Core 6 sq mm Alfanar 0.6/1 kV, PVC Insulated

Two core stranded copper power cable (CU/PVC/PVC/PVC), Insulation color (red, black). The outer jacket prevents harmful sunlight from damaging the cable, and protects the cable from shock, friction and corrosion, produced by Al Fanar Company, size 6 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 6 mm2
• Max DC Conductor Resistance at 20°C: 3.0800 ohm/km
• Max AC Conductor Resistance at 70°C: 3.6853 ohm/km
• Current Rating Laid in Ground: 58 Ampere
• Current Rating Laid In Ducts: 40 Ampere
• Current Rating Laid in Free Air: 48 Ampere
• Approx Overall Diameter: 15.8 mm
• Weight: 405 kg/km
• Phase Core Color: (Red, Black)
• Standard: IEC 60502-1
