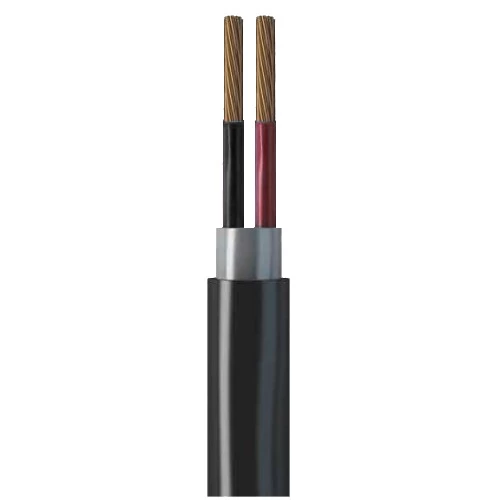

Stranded Copper Cable 2 Core 4 mm Jeddah, 0.6/1kV, PVC Insulated

Two core stranded copper cable (CU/PVC/PVC), The outer jacket provides additional protection for the cable from shock, friction and abrasion, and prevents harmful sunlight from damaging the cable, produced by Jeddah Company, size 4 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 4 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 14.7 mm
• Weight: 315 kg/km
• Max DC Conductor Resistance at 20°C: 4.810 ohm/km
• Current Rating Laid in Ground: 55 Ampere
• Current Rating Laid in Ducts: 45 Ampere
• Current Rating Laid in Free Air: 49 Ampere
• Phase Core Colors: (Red, Black)
• Standard: IEC 60502-1
