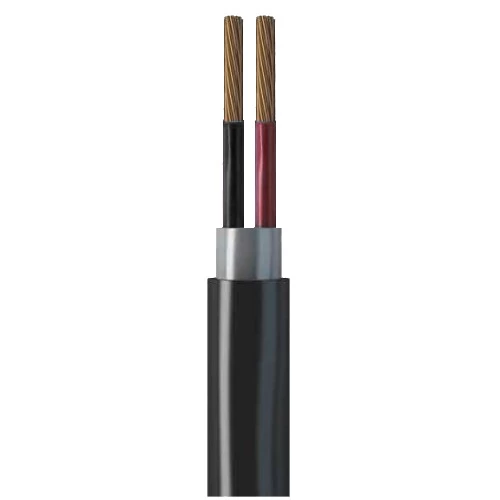

Stranded Copper Cable 2 Core 35 mm Jeddah, 0.6/1kV, PVC Insulated

Two core stranded copper cable (CU/PVC/PVC), Overall diameter 25.1mm, PVC layer forms excellent insulation around the conductor to prevent electrical current leakage, produced by Jeddah Company, size 35 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 35 mm2
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.7 mm
• Approx Overall Diameter: 25.1 mm
• Weight: 1020 kg/km
• Max DC Conductor Resistance at 20°C: 0.524 ohm/km
• Current Rating Laid in Ground: 177 Ampere
• Current Rating Laid in Ducts: 147 Ampere
• Current Rating Laid in Free Air: 182 Ampere
• Phase Core Colors: (Red, Black)
• Standard: IEC 60502-1
