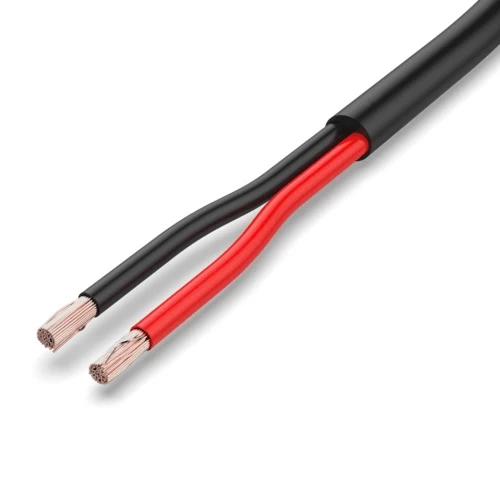

Stranded Copper Cable 2 Core 35 mm, 300/500V, PVC 70°C Insulation, Black Color, 1000 meter/Drum | Saudi Company

Stranded copper electric cable (CU/PVC/PVC), 2 core, 35 sq mm, 300/500V, black sheath, insulated with PVC 70°C. Manufactured by Saudi Cable Company. Highly resistant to corrosion, ensuring ideal protection.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 35mm2
• Number of Wires: 19
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.6 mm
• Overall Diameter: 24.7 mm
• Weight: 1186 kg/km
• Length: 1000 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CBH2-12H
