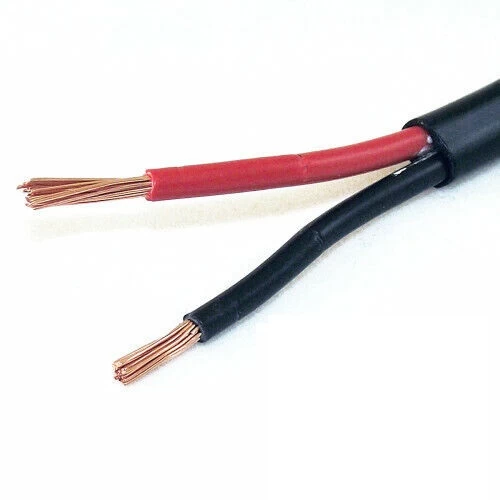

Stranded Copper Cable 2 Core 25mm, 300/500V, PVC Insulation and Sheath | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 2 core, 25mm2 cross-sectional area, low voltage 300/500V, The cable is available in a wide range of sizes and colors, allowing you to choose the right size for your specific application, Black/Red, from Nohascom.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of Wires: 7
• Wire Diameter: 2.14 mm
• Nominal Insulation Thickness: 1.2
• Thickness of Inner Covering: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 22.2 mm
• Weight: 890 kg/k
• Insulation Color: (Red, Black)
• Standard: SASO IEC 60227-4
