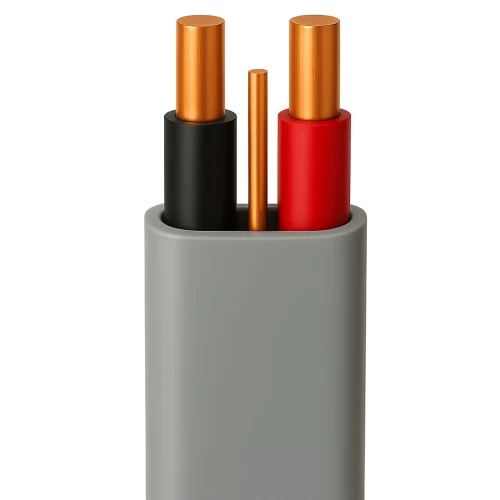

Stranded Copper Cable 2 Core 2.5mm, 300/500V, Solid Flat with Earth Conductor, PVC 70°C Insulation, Gray Color, 100 M | Saudi Cable Company

Solid copper electrical flat cable with Earth Conductor (CU/PVC/PVC), 2 core, 2.5mm2 cross-sectional area, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC). Insulated with high-quality  (PVC 70°C), offering solid protection against environmental factors. Perfect for internal electrical wiring in residential and commercial buildings.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5mm2
• Number of Wires: 1
• Earth Continuity Conductor (no.xmm): 1×1.13 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.0 mm
• Overall Diameter: 11.0×6.2 mm
• Weight: 110 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABG2-05H
