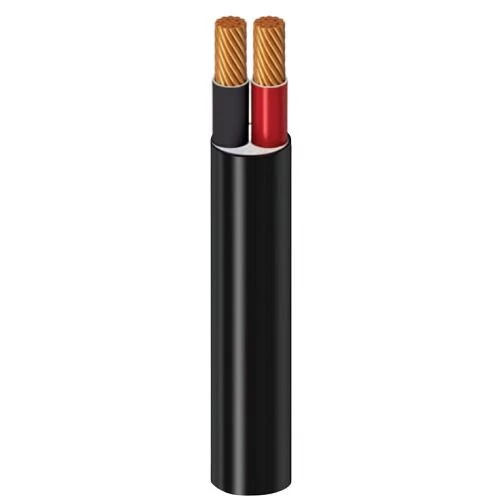

Stranded Copper Cable 2 Core 2.5mm 300/500 volts, PVC Insulated and Sheathed | Alfanar

Cable 2.5 mm2 , 2 core  600/1000 volts, stranded copper conductor, PVC insulated and sheathed, the insulation layer provides excellent electrical insulation, the outer jacket also provides protection for the cable from corrosion and external factors, insulation color (red, black), produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-R)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.67 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 10.4 mm
• Weight: 170 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Black)
• Standard: IEC 60227-4
