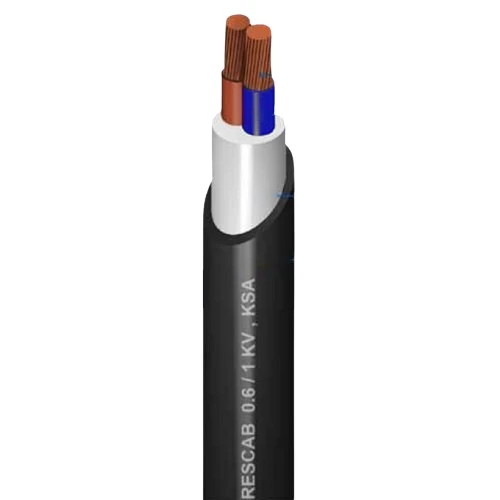

Stranded Copper Cable 2 Core 2.5 sq mm CU/PVC/PVC, 0.6/1kV, 1000 meter | RESCAB

Copper Stranded Electric Cable (CU/PVC/PVC), 2 Core, 2.5 mm, Low Voltage 0.6/1kV, produced by Red Sea Cables. The cable provides excellent resistance to environmental factors like heat and moisture, ensuring long life and continuous performance.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 14 mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 260 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown, Blue
• Standard: BS 5467, 6346 Latest
