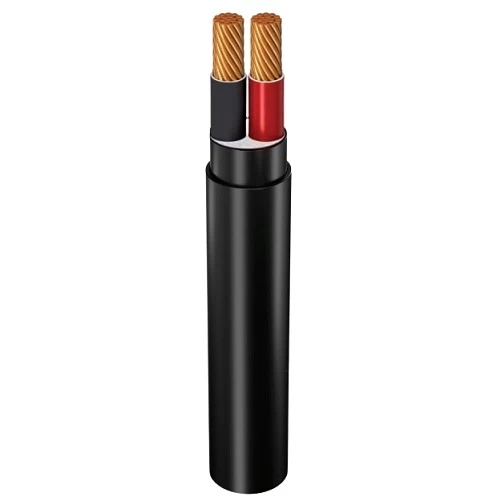

Stranded Copper Cable 2 Core 2.5 sq mm Alfanar 0.6/1 kV, PVC Insulated
Two core stranded copper power cable (CU/PVC/PVC/PVC), PVC cables are durable, economical, and reliable in performance, produced by Al Fanar Company, size 2.5 mm2.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket: Double PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Max DC Conductor Resistance at 20°C: 7.4100 ohm/km
- Max AC Conductor Resistance at 70°C: 8.8661 ohm/km
- Current Rating Laid in Ground: 36 Ampere
- Current Rating Laid In Ducts: 24 Ampere
- Current Rating Laid in Free Air: 28 Ampere
- Approx Overall Diameter: 12.8 mm
- Weight: 245 kg/km
- Phase Core Color: (Red, Black)
- Standard: IEC 60502-1
