Stranded Copper Cable 2 Core 2.5 sq mm, 300/500V, Solid Flat , PVC 85°C Insulation, Black Color, 100 M/Drum | Saudi Cable Company

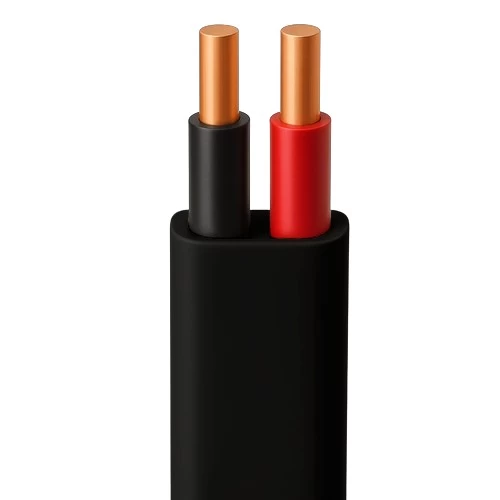

Solid copper electrical flat cable (CU/PVC/PVC), 2 core, 2.5mm² cross-sectional area, insulated with materials that withstand temperatures up to 85°C. The black jacket enhances UV resistance and provides higher durability in harsh outdoor environments. Produced by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.0 mm
• Overall Diameter:  9.8×6.2 mm
• Weight: 94 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: AGF2-05H
