Stranded Copper Cable 2 Core 2.5 mm, 0.6/1kV, CU/PVC/PVC , Solid, Length 1000 meter | RESCAB

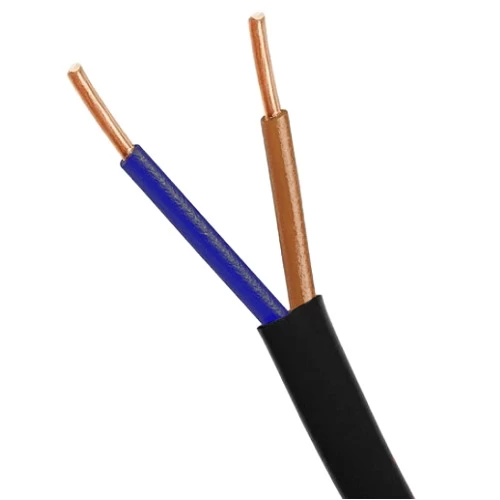

Unarmored solid copper power cable (CU/PVC/PVC), 2 core, 2.5 mm2 size conductor, phase core color blue, brown, PVC (polyvinyl chloride) layer forms excellent insulation, this makes it suitable for indoor and outdoor applications, produced by Red Sea Cables (RESCAB) company.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 13 mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 225 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue, Brown
• Standard: BS 5467, 6346 Latest
