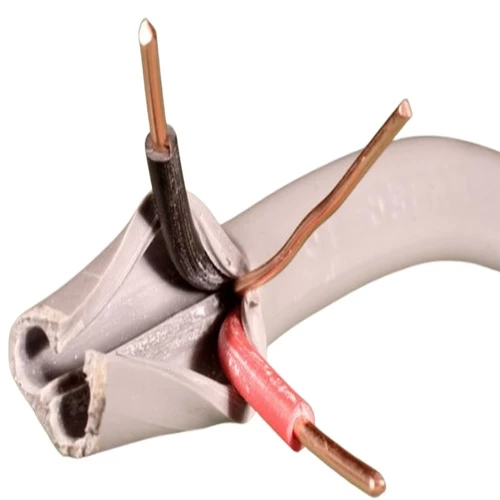

Stranded Copper Cable 2 Core 16mm Flat Twin and Earth, 300/500 Voltage Rating, PVC Insulated and Sheathed | Riyadh Cables
2 core stranded copper cable, 16 mm size conductor, 300/500 volts, PVC sheathed, insulation color is red and black, produced by Riyadh Cables Company, according to the British standard BS 6004, which ensures its quality and performance, PVC insulated.
- Conductor: Copper
- Conductor Shape: Stranded as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 16 mm
- Number of Wires: 7
- Insulation Thickness: 1 mm
- Sheath Thickness: 1.3 mm
- Overall Diameter or Dimensions: Lower Limit 9 x 18 mm / Upper Limit 11 x 22.5 mm
- Max DC Conductor Resistance at 20°C: 1.15 ohm/km
- Weight: 550 kg/km
- Insulation Color: (Red, Black)
- Sheath Color: Gray
- Standard: BS 6004
