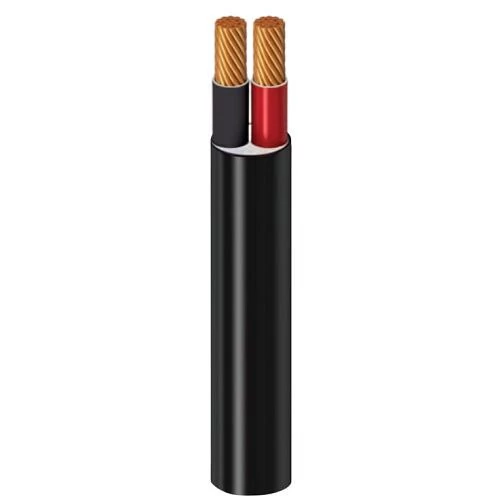

Stranded Copper Cable 2 Core 16mm 300/500 volts, PVC Insulated and Sheathed | Alfanar

Electric cable 16 mm2 , 2 core  600/1000 volts, stranded copper conductor, PVC insulated and sheathed, insulation color (red, black), it is used for powering electrical units and equipment in various projects, from Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-R)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of Wires: 7
• Wire Diameter: 1.68 mm
• Nominal Insulation Thickness: 1 mm
• Thickness of Inner Covering: 0.6 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 17.4 mm
• Weight: 600 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Black)
• Standard: IEC 60227-4
