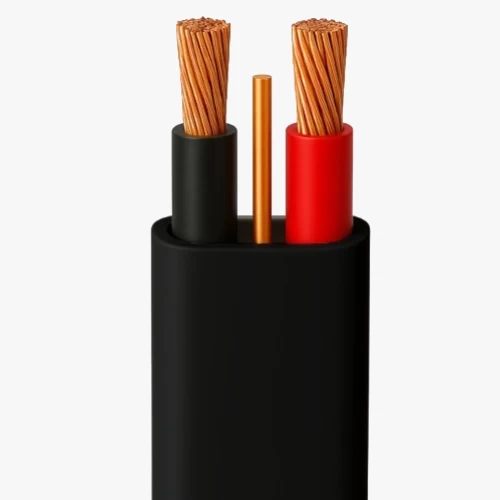

Stranded Copper Cable 2 Core 16 sq mm Flat with Earth Conductor, 300/500V, PVC 70°C, Black Color, 2000 meter | Saudi Company

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), 16mm, 70°C insulation, black sheath, 2000m length, low voltage 300/500V. Produced by Saudi Cable Company (SCC). PVC insulation provides excellent protection, and the sheath offers protection against corrosion and environmental factors.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 16mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 7×1.02 mm
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.3 mm
• Overall Diameter: 22.0×11.0mm
• Weight: 538 kg/km
• Length: 2000 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CBG2-09H
