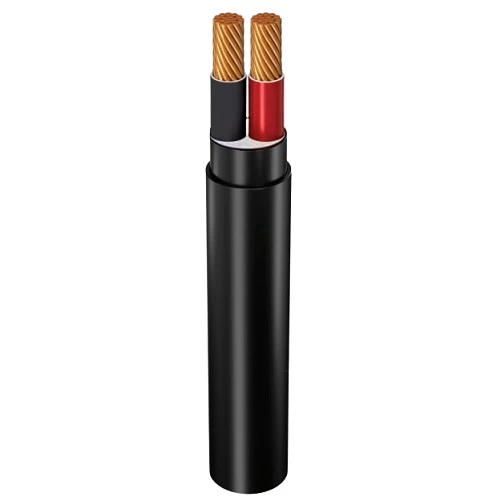

Stranded Copper Cable 2 Core 16 sq mm Alfanar 0.6/1 kV, PVC Insulated
Two core stranded copper power cable (CU/PVC/PVC/PVC), It is suitable for indoor and outdoor uses where there is no risk of mechanical damage, produced by Al Fanar Company, size 16 mm2.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket: Double PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 16 mm2
- Max DC Conductor Resistance at 20°C: 1.1500 ohm/km
- Max AC Conductor Resistance at 70°C: 1.3763 ohm/km
- Current Rating Laid in Ground: 98 Ampere
- Current Rating Laid In Ducts: 70 Ampere
- Current Rating Laid in Free Air: 86 Ampere
- Approx Overall Diameter: 19 mm
- Weight: 675 kg/km
- Phase Core Color: (Red, Black)
- Standard: IEC 60502-1
