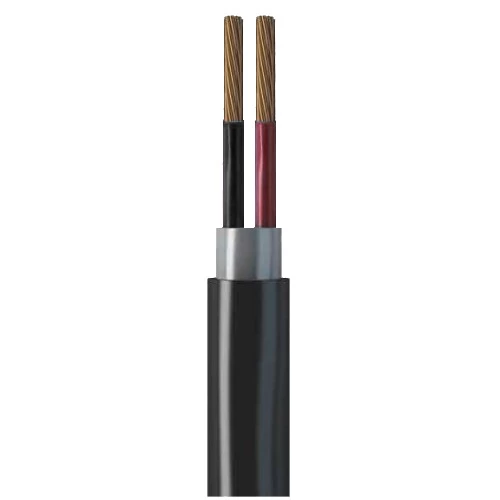

Stranded Copper Cable 2 Core 16 mm Jeddah, 0.6/1kV, PVC Insulated

Two core stranded copper cable (CU/PVC/PVC), Insulation color (red, black), PVC cables are a popular and effective choice for electrical power delivery in various applications, produced by Jeddah Company, size 16 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 16 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 19.7 mm
• Weight: 695 kg/km
• Max DC Conductor Resistance at 20°C: 1.150 ohm/km
• Current Rating Laid in Ground: 116 Ampere
• Current Rating Laid in Ducts: 91 Ampere
• Current Rating Laid in Free Air: 112 Ampere
• Phase Core Colors: (Red, Black)
• Standard: IEC 60502-1
