Stranded Copper Cable 2 Core 10mm, 300/500V, Solid , PVC 70°C Insulation, Gray Color, Length 2000 M | Saudi Cable Company

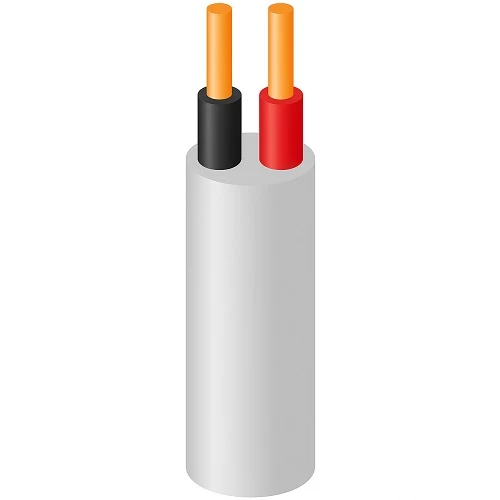

Solid copper electric cable (CU/PVC/PVC), 2 core, 10 sq mm, 300/500V, with PVC 70°C insulation and strong gray sheath, 2000 meter drum, ideal for lighting installations and electrical outlets, Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 15.5 mm
• Weight: 416 kg/km
• Length: 2000 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABH2-08H
