Stranded Copper Cable 2 Core 10mm 300/500 Rated Voltage, PVC Insulated and Sheathed | Alfanar

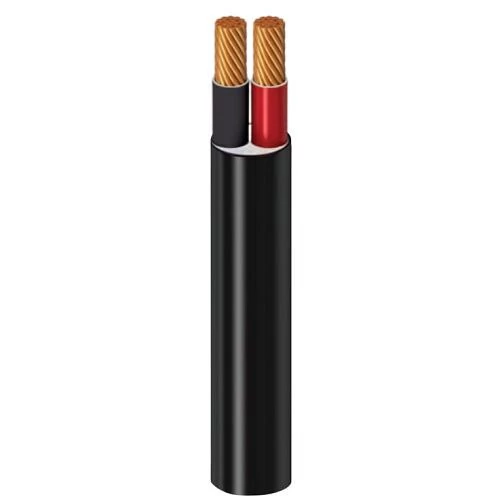

Stranded electrical copper cable 2 core (CU/PVC/PVC), 10 mm2 size, low voltage 300/500V, insulation color (red, black), usable in open environments both indoors and outdoors, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-R)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of Wires: 7
• Wire Diameter: 1.34 mm
• Nominal Insulation Thickness: 1 mm
• Thickness of Inner Covering: 0.6 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 15.4 mm
• Weight: 435 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Black)
• Standard: IEC 60227-4
