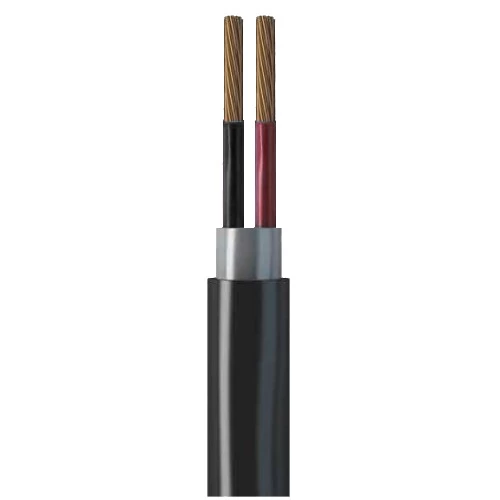

Stranded Copper Cable 2 Core 10 mm Jeddah, 0.6/1kV, PVC Insulated

Two core stranded copper cable (CU/PVC/PVC), Available in a variety of sizes and colors with the highest quality and best prices, produced by Jeddah Company, size 10 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 17.8 mm
• Weight: 515 kg/km
• Max DC Conductor Resistance at 20°C: 1.830 ohm/km
• Current Rating Laid in Ground: 89 Ampere
• Current Rating Laid in Ducts: 77 Ampere
• Current Rating Laid in Free Air: 84 Ampere
• Phase Core Colors: (Red, Black)
• Standard: IEC 60502-1
