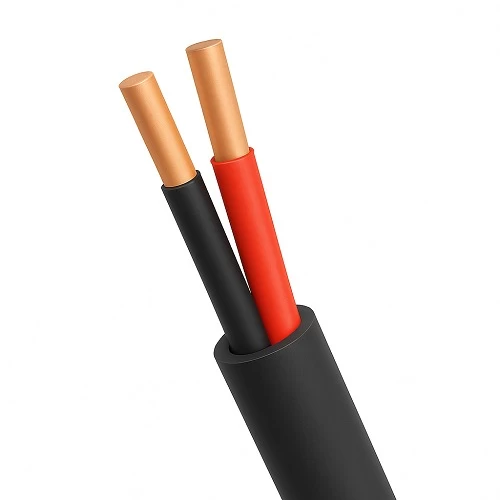

Stranded Copper Cable 2 Core 1.5mm, 0.6/1kV, Solid, PVC 85°C Insulation, Black Color, 100 M | Saudi Cables Company

Unarmored solid copper power cable (CU/PVC/PVC), two core, 1.5mm2 size conductor, Produced by Saudi Cables Company (SCC). PVC cables are a widely used and effective choice for power transmission in various applications.

• Conductor: Solid Copper
• Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 12.2 mm
• Weight: 146 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red & Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJH2-04A
