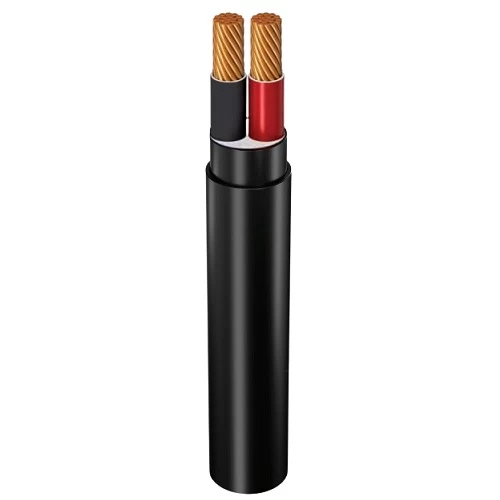

Stranded Copper Cable 2 Core 1.5 sq mm Alfanar 0.6/1 kV, PVC Insulated

Two core stranded copper power cable (CU/PVC/PVC/PVC), PVC cables are a popular and effective option for conducting electrical power in various applications, produced by Al Fanar Company, size 1.5 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Max DC Conductor Resistance at 20°C: 12.1000 ohm/km
• Max AC Conductor Resistance at 70°C: 14.4777 ohm/km
• Current Rating Laid in Ground: 27 Ampere
• Current Rating Laid In Ducts: 19 Ampere
• Current Rating Laid in Free Air: 21 Ampere
• Approx Overall Diameter: 11.9 mm
• Weight: 200 kg/km
• Phase Core Color: (Red, Black)
• Standard: IEC 60502-1
