Stranded Copper Cable 2 Core 1.5 sq mm, 300/500V, Solid Flat , PVC 70°C Insulation, Black Color, 100 meter | Saudi Cable Company

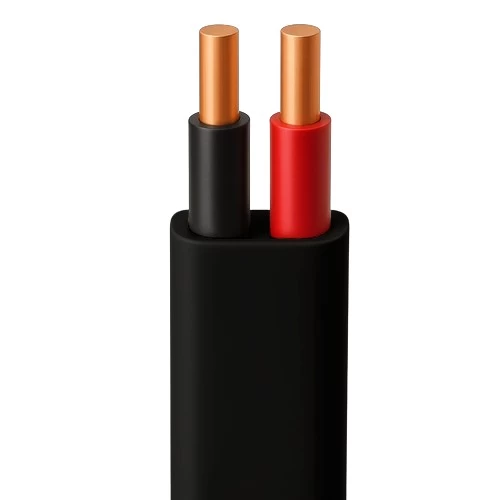

Solid copper electrical flat cable (CU/PVC/PVC), 2 core, 1.5mm² cross-sectional area, insulated with materials designed to withstand temperatures up to 70°C. The black jacket provides effective protection against harmful environmental conditions such as moisture and high heat. Produced by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1.5mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.7 mm
• Nominal Sheath Thickness: 0.9 mm
• Overall Diameter:  8.4×5.4 mm
• Weight: 62 kg/km
• Length:100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABF2-04H
