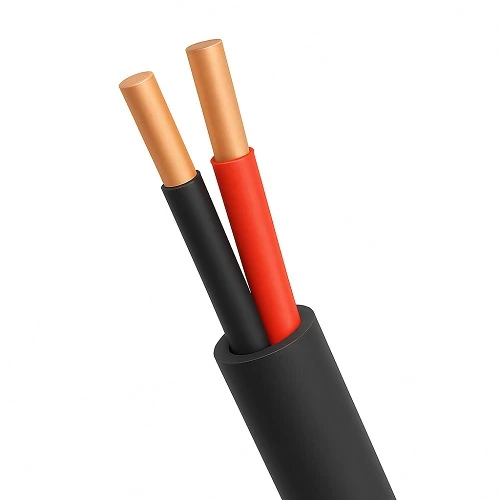

Stranded Copper Cable 2 Core 1.5 sq mm, 0.6/1kV, Solid , PVC 70°C Insulation, Black Sheath, 1000 meter | Saudi Cables Company

Unarmored solid copper power cable (CU/PVC/PVC), two cores, 1.5mm², low voltage 0.6/1kV, Used for basic electrical systems in residential buildings. Provides stable and long-lasting performance. Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: Heat resistive PVC type 1 to BS6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 12.2 mm
• Weight: 146 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJH2-04A
