Stranded Copper Cable 2 Core 1.5 mm, 300/500V, Solid Flat with Earth Conductor, PVC 85°C Insulation, Gray Color, 50 meter Length | Saudi Cable Company

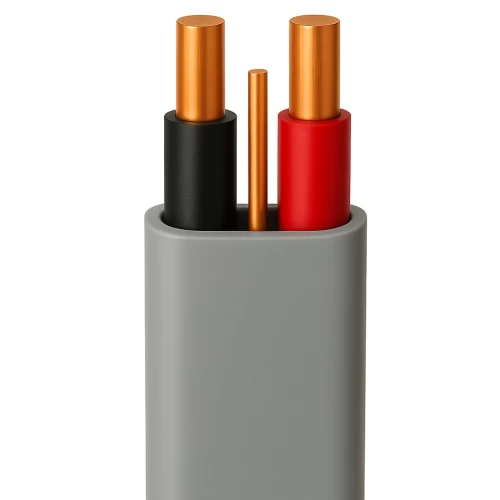

Solid copper electrical flat cable with Earth Conductor (CU/PVC/PVC), 2 core, 1.5mm2 cross-sectional area, low voltage 300/500V. Produced by Saudi Cable Company (SCC). Insulated with high-quality PVC, providing excellent electrical protection. The gray sheath offers additional protection against external elements.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1.5mm2
• Number of Wires: 1
• Earth Continuity Conductor (no.xmm): 1×1.13 mm
• Nominal Insulation Thickness: 0.7 mm
• Nominal Sheath Thickness: 0.9 mm
• Overall Diameter: 9.6×5.4 mm
• Weight: 77 kg/km
• Length: 50 meter / Coil
• Insulation Color: (Red & Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: AGG2-04H
