Stranded Copper Cable 10mm2 Flat Twin, Size, 300/500 Rated Voltage, PVC Insulated and Sheathed | Riyadh Cables

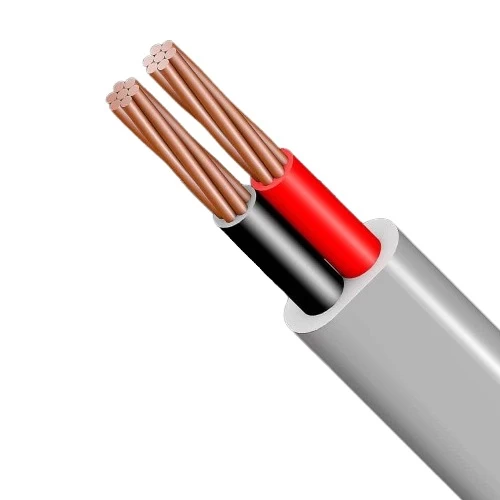

Two core stranded copper cable, 10 mm size conductor, 300/500 volts, its flat shape makes it ideal for installation in tight spaces, PVC insulated, PVC sheathed, insulation color is red and black, produced by Riyadh Cables Company.
- Conductor: Copper
- Conductor Shape: Stranded as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 10 mm
- Number of Wires: 7
- Insulation Thickness: 1 mm
- Sheath Thickness: 1.2 mm
- Overall Diameter or Dimensions: Lower Limit 7.8 x 13 mm / Upper Limit 9.6 x 16 mm
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Weight: 320 kg/km
- Insulation Color: (Red, Black)
- Standard: BS 6004
