Stranded Copper Cable 10 mm, 0.6/1kV, Solid, 2×, PVC Insulated | Riyadh Cables

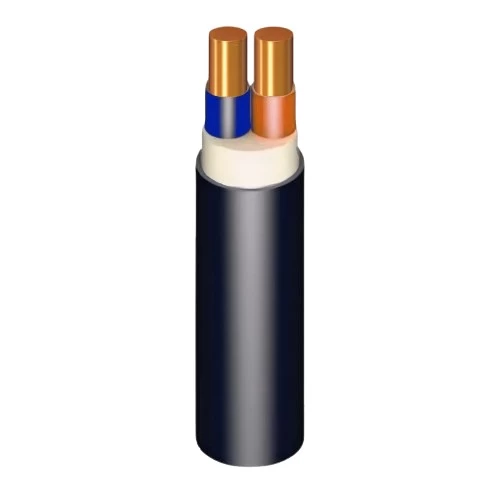

Two core electrical cable (CU/PVC/PVC), solid copper conductor, The thickness of the outer jacket layer is 1.8 mm. The outer jacket provides protection for the cable from abrasion and external factors, produced by Riyadh Cables Company, Size 10 mm2.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage : 600/1000 volts
• Conductor Shape: Solid (re)
• Number of Cores: 2 Core
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of Wires: 1
• Approx Conductor Diameter: 3.57 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 18 mm
• Weight: 500 kg/km
• Length : 1000 meters
• Phase Core Colors: (Brown, blue)
• Standard: IEC 60502-1
