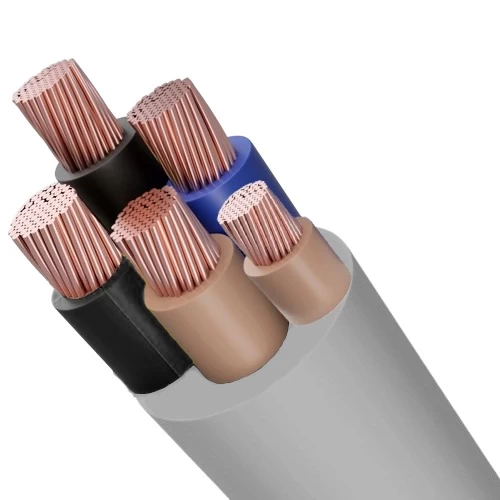

Riyadh Electric Cable 4mm2 300/500 Rated Voltage, 5 Core Stranded Copper, PVC Insulated

5 core stranded electrical copper cable (CU/PVC/PVC), 4 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is black, blue, brown, black and brown, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 4 mm
• Number of Wires: 7
• Approx Conductor Diameter: 2.55 mm
• Insulation Thickness: 0.8
• Sheath Thickness: 1.4 mm
• Overall Diameter: 17 mm
• Weight: 410 kg/km
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Standard Packing Length: 100 meter coil
• Insulation Color: (Black, Blue, Brown, Black, Brown)
• Outer Sheath Color: Gray
• Standards: SSA 1450, IEC 60227 (IEC 10)
