Riyadh Cable 2.5mm 300/500 Volts, 5 Core Stranded Copper, PVC Insulation

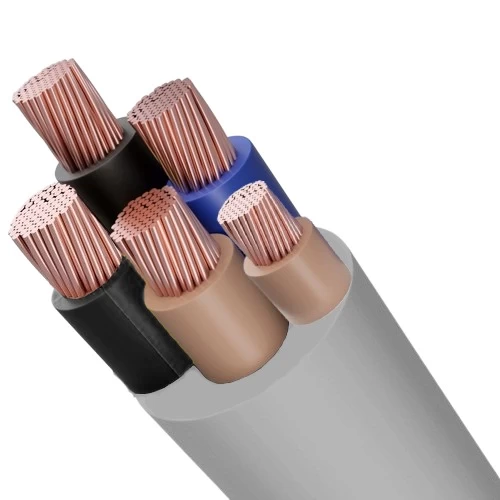

5 core stranded copper cable, 2.5mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, color is black, blue, brown, black and brown, produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 2.5 mm
• Number of Wires: 7
• Approx Conductor Diameter: 2.01 mm
• Insulation Thickness: 0.8
• Sheath Thickness: 1.2 mm
• Overall Diameter: 14.5 mm
• Weight: 290 kg/km
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Standard Packing Length: 100 meter coil
• Insulation Color: (Black, Blue, Brown, Black, Brown)
• Outer Sheath Color: Gray
• Standards: SSA 1450, IEC 60227 (IEC 10)
