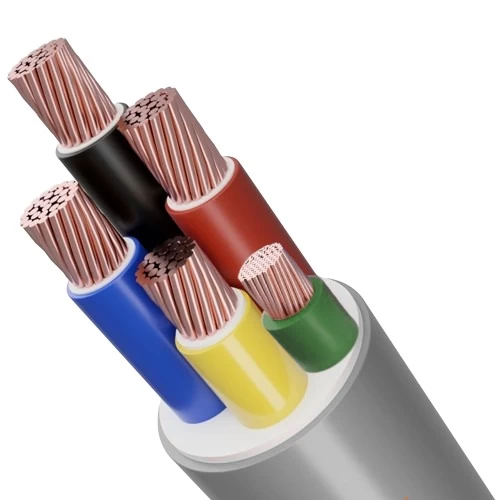

Riyadh Cable 16mm 300/500 Volts, 5 Core Stranded Copper, PVC Insulation and Sheath

5 core stranded copper cable, 16mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is red, blue, yellow, black and green, available in a variety of sizes and colors with highest quality and best prices, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 16 mm
• Number of Wires: 7
• Approx Conductor Diameter: 5.10 mm
• Insulation Thickness: 1
• Sheath Thickness: 1.6 mm
• Overall Diameter: 26 mm
• Weight: 1250 kg/km
• Max DC Conductor Resistance at 20°C: 1.15 ohm/km
• Standard Packing Length: 1000/2000 meter
• Insulation Color: (Red, Blue, Yellow, Black, Green)
• Outer Sheath Color: Gray
• Standards: SSA 1450, IEC 60227 (IEC 10)
