PVC Copper Cable 600/1000 V, Single Core Stranded, Size 185 mm2, Brown Color | Riyadh Cables

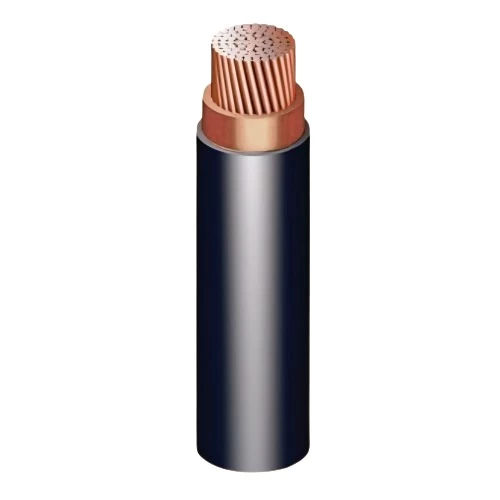

Stranded single core electrical copper cable PVC, brown color, thickness of first insulation layer 2 mm, cross-sectional area 185 mm2, low voltage 600/1000V, Features two insulated layers that provides protection for the cable from corrosion and external factors, Produced by Riyadh Cables Company.

• Insulation : PVC
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Size (cross-sectional area) : 185 mm2
• Number of wires : 37
• Approx conductor diameter : 17.4 mm
• Thickness of  first insulation layer : 2 mm
• Thickness of outer jacket layer : 1.7 mm
• Approx overall diameter : 25 mm
• Weight : 2000 kg/km
• Length : 1000 meters
• Color : Brown
• According to standard : IEC 60502-1
