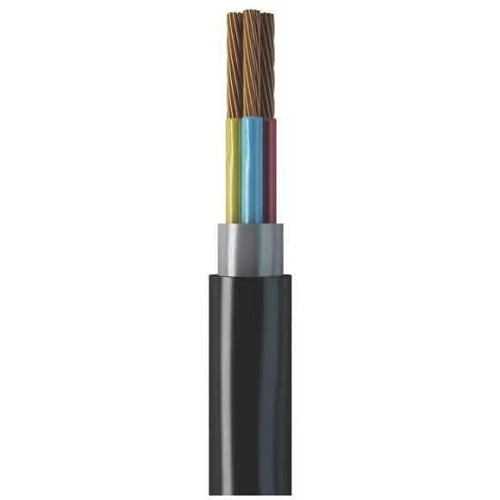

Jeddah PVC Insulated Stranded Copper Power Cable, Size 3×10+8mm2, 600/1000V

3.5 core stranded copper cable (CU/PVC/PVC), The outer jacket prevents harmful sunlight from damaging the cable, produced by Jeddah Company, size 3×10+8 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): 3×10+8 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 19.8 mm
• Weight: 715 kg/km
• Max DC Conductor Resistance at 20°C: 1.83 / 3.08 ohm/km
• Current Rating Laid in Ground: 82 Ampere
• Current Rating Laid in Ducts: 67 Ampere
• Current Rating Laid in Free Air: 67 Ampere
• Phase Core Colors: (red, yellow, blue, black)
• Standard: IEC 60502-1
