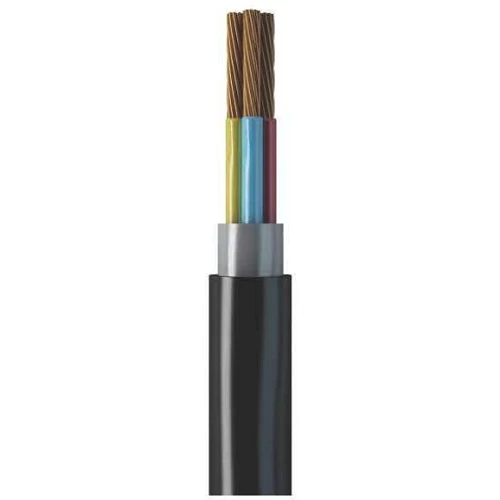

Jeddah Cable 35mm 3 Phase 600/1000V, Stranded Copper Conductor, PVC Insulated

Three core stranded copper cable (CU/PVC/PVC), size 35 mm2, It has high resistance to water and moisture, making it suitable for indoor and outdoor uses, produced by Jeddah Company.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 35 mm2
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 27 mm
• Weight: 1615 kg/km
• Max DC Conductor Resistance at 20°C: 0.524 ohm/km
• Current Rating Laid in Ground: 163 Ampere
• Current Rating Laid in Ducts: 133 Ampere
• Current Rating Laid in Free Air: 140 Ampere
• Phase Core Colors: (red, yellow, blue)
• Standard: IEC 60502-1
