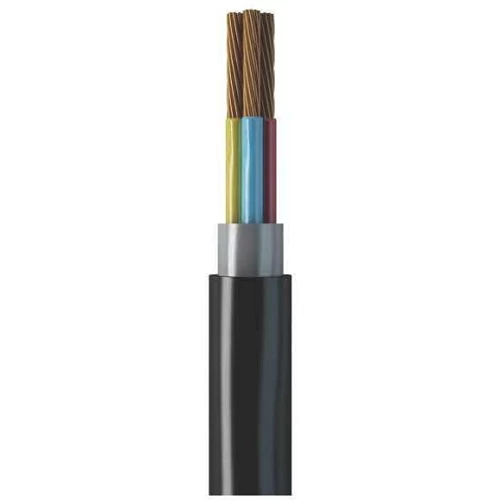

Jeddah Cable 25mm 3 Phase 600/1000V, Stranded Copper Conductor, PVC Insulated

Three core stranded copper cable (CU/PVC/PVC), It is used to deliver electrical energy in various applications. It is distinguished by its economical cost, reliable performance, and durability, produced by Jeddah Company, size 25 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 25 mm2
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 24.5 mm
• Weight: 1215 kg/km
• Max DC Conductor Resistance at 20°C: 0.707 ohm/km
• Current Rating Laid in Ground: 136 Ampere
• Current Rating Laid in Ducts: 112 Ampere
• Current Rating Laid in Free Air: 119 Ampere
• Phase Core Colors: (red, yellow, blue)
• Standard: IEC 60502-1
