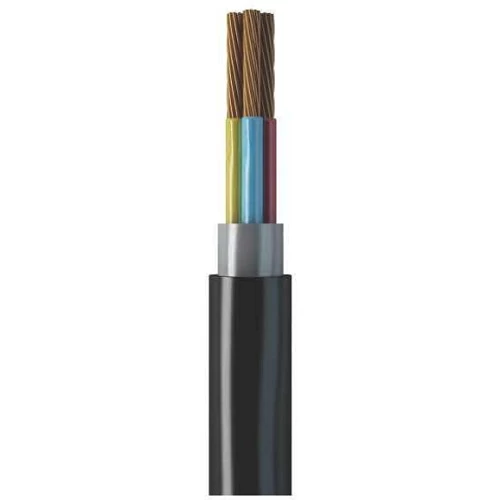

Jeddah Cable 2.5mm 3 Phase 600/1000V, Stranded Copper Conductor, PVC Insulated

Three core stranded copper cable (CU/PVC/PVC), It has high resistance to water and moisture, making it suitable for indoor and outdoor uses, produced by Jeddah Company, size 2.5 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 13.4 mm
• Weight: 270 kg/km
• Max DC Conductor Resistance at 20°C: 7.410 ohm/km
• Current Rating Laid in Ground: 37 Ampere
• Current Rating Laid in Ducts: 32 Ampere
• Current Rating Laid in Free Air: 28 Ampere
• Phase Core Colors: (red, yellow, blue)
• Standard: IEC 60502-1
