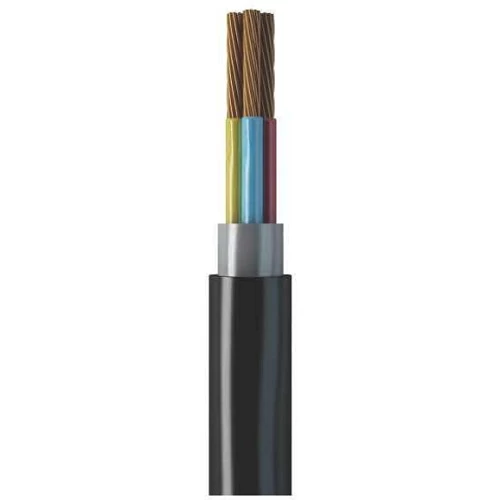

Jeddah Cable 16mm 3 Phase 600/1000V, Stranded Copper Conductor, PVC Insulated

Three core stranded copper cable (CU/PVC/PVC), produced by Jeddah Company, size 16 mm2, It has high resistance to water and moisture, making it suitable for indoor and outdoor uses.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 16 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 20.8 mm
• Weight: 860 kg/km
• Max DC Conductor Resistance at 20°C: 1.150 ohm/km
• Current Rating Laid in Ground: 102 Ampere
• Current Rating Laid in Ducts: 84 Ampere
• Current Rating Laid in Free Air: 91 Ampere
• Phase Core Colors: (red, yellow, blue)
• Standard: IEC 60502-1
