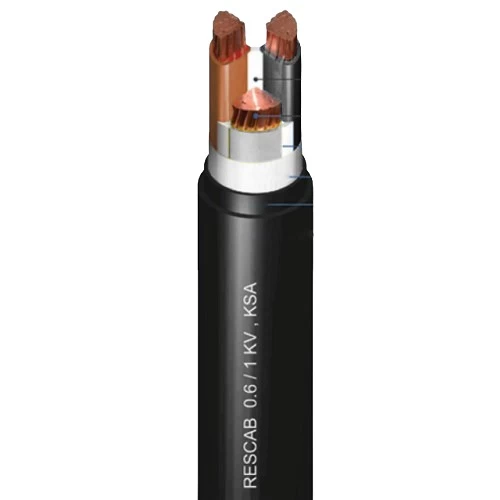

CU/PVC/PVC Power Cable 50mm Size 0.6/1kV, Three Core, Stranded Copper, 500 meter | RESCAB

Stranded copper power cable (CU/PVC/PVC), 3 phase, 50mm2 size conductor, 0.6/1kV, It resists the effects of ultraviolet rays, which maintains its properties and external appearance for a long time, even when exposed to direct sunlight. Produced by Red Sea Cables Company (RESCAB).

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 50 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.4 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 31 mm
• Max DC Conductor Resistance at 20°C: 0.387 ohm/km
• Weight: 1980 kg/km
• Standard Length: 500 meters
• Phase Core Color: brown, black, grey
• Standard: BS 5467
