CU/PVC/PVC 4mm Two Core Cable, Stranded Copper Wire, 0.6/1kV, 1000 meter | RESCAB

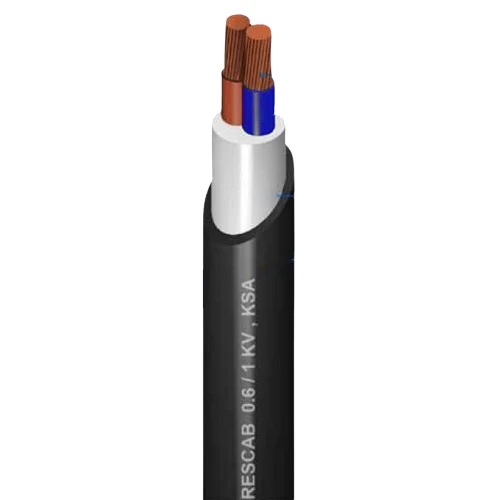

Copper Stranded Electric Cable (CU/PVC/PVC), 2 Core, 4 mm, Low Voltage 0.6/1kV, manufactured by Red Sea Cables. This cable is the ideal choice for power transmission in areas that require high resistance to salts and moisture.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 16 mm
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Weight: 350 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown, Blue
• Standard:BS 5467, 6346 Latest
