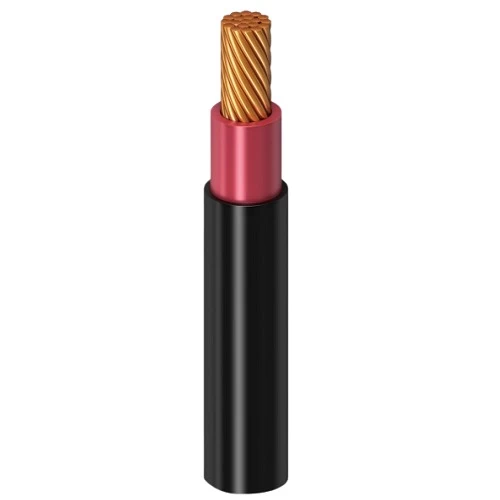

Alfanar Cable 95 mm Single Core, Stranded Copper 0.6/1 kV, PVC Insulated

Single core stranded copper power cable (CU/PVC/PVC), size 95 mm2, PVC cables are a popular and effective option for conducting electrical power in various applications, produced by Al Fanar Company.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 95 mm2
• Approx Overall Diameter: 17.5 mm
• Weight: 1045 kg/km
• Max DC Conductor Resistance at 20°C: 0.1930 ohm/km
• Max AC Conductor Resistance at 70°C: 0.2324 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 209 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 209 Ampere
• Current Rating In Buried Ducts (Trefoil): 172 Ampere
• Current Rating In Buried Ducts (Flat Touched): 185 Ampere
• Current Rating In Free Air (Trefoil): 216 Ampere
• Current Rating In Free Air (Flat Touched): 223 Ampere
• Current Rating In Free Air (Flat Spaced): 276 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
