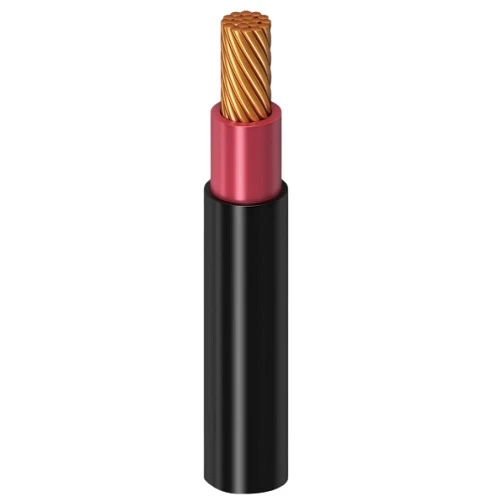

Alfanar Cable 25 mm Single Core, Stranded Copper 0.6/1 kV, PVC Insulated

Single core stranded copper power cable (CU/PVC/PVC), Available in a variety of sizes and colors with the highest quality and best prices, produced by Al Fanar Company, size 25 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 25 mm2
• Approx Overall Diameter: 11.1 mm
• Weight: 330 kg/km
• Max DC Conductor Resistance at 20°C: 0.7270 ohm/km
• Max AC Conductor Resistance at 70°C: 0.8702 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 101 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 101 Ampere
• Current Rating In Buried Ducts (Trefoil): 78 Ampere
• Current Rating In Buried Ducts (Flat Touched): 86 Ampere
• Current Rating In Free Air (Trefoil): 92 Ampere
• Current Rating In Free Air (Flat Touched): 94 Ampere
• Current Rating In Free Air (Flat Spaced): 119 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
