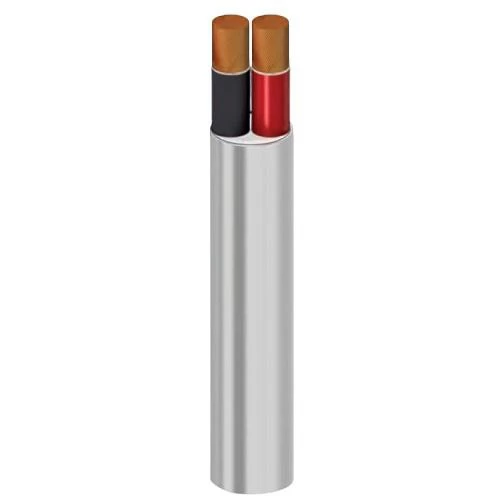

Alfanar 2.5mm Two Core Cable 600/1000V, Flexible Copper Conductor, PVC Insulated and Sheathed

Cable 2.5 mm2 two core  600/1000V, flexible copper conductor, PVC insulated and sheathed, insulation color (red, black), ideal for both indoor and outdoor installations in cable ducts, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Cable Type: (H05VV-F)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 50
• Wire Diameter: 0.25 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Overall Diameter: 11 mm
• Weight: 190 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Black)
• Standard: IEC 60502-1
