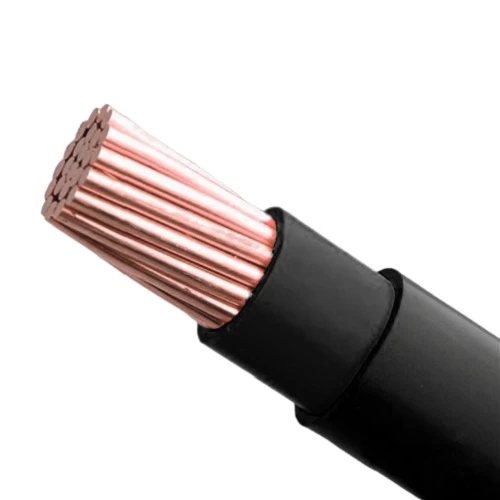

70 mm 0.6/1kV Single Core Cable , Stranded Wire Conductor, PVC Insulation and Sheath, Black Color, 1000 meter | BAHRA

Unarmored stranded copper power cable (CU/PVC/PVC), single core, 70mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion, prevent leakage of electric current.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 70 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 16.2 mm
• Weight: 776 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
