6mm Three Core Flat Cable, 300/500 Rated Voltage, Stranded Copper PVC, Insulation and Sheath | Riyadh Cables

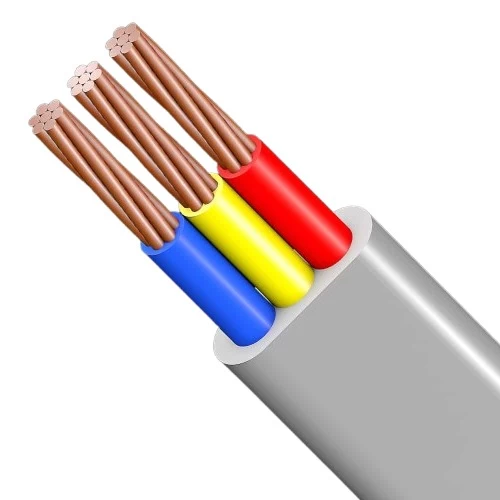

Three core stranded electrical copper cable (CU/PVC/PVC), 6 mm2 cross-sectional area, 300/500V, insulation color is red, yellow and blue, used to supply power for various domestic and industrial electrical applications, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 6 mm
• Number of Wires: 7
• Insulation Thickness: 0.8 mm
• Sheath Thickness: 1.1 mm
• Overall Diameter or Dimensions: Lower Limit 6.4 x 15 mm / Upper Limit 8 x 18 mm
• Max DC Conductor Resistance at 20°C: 3.08 ohm/km
• Weight: 300 kg/km
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Gray
• Standard: BS 6004
