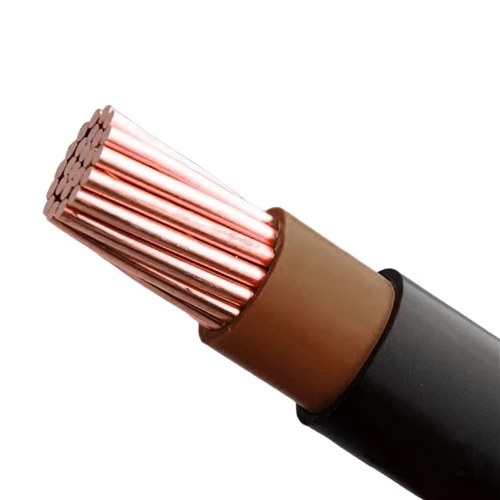

630mm 0.6/1kV Single Core Electrical Cable, Stranded Copper Conductor, PVC Insulation, Brown Color, 500 meter Length | BAHRA

Unarmored stranded copper Electric Cable (CU/PVC/PVC), 1C, 630 sq mm size conductor, produced by BAHRA Cables company according to British standard (BS 5467), They are distinguished by their economical cost, reliable performance, and durability.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 630 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.8 mm
• Nominal Sheath Thickness: 2.2 mm
• Approx Overall Diameter: 40.5 mm
• Weight: 6535 kg/km
• Standard Length: 500 meters
• Phase Core Color: Brown
• Standard: BS 5467 (A:2008)
