6 sq mm Two Core Copper Cable, Stranded, Insulated with PVC 70°C, 0.6/1kV, Black Sheath, 1000 M | Saudi Cables Company

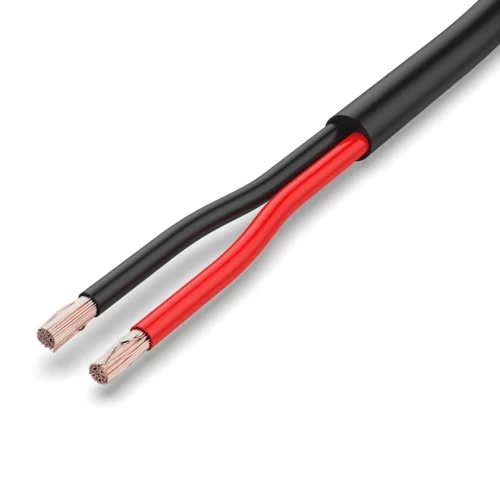

Unarmored stranded copper power cable (CU/PVC/PVC), two cores, 6mm², low voltage 0.6/1kV, Ideal for wiring that demands permanent flexibility. Extends cable lifespan. Produced by Saudi Cables Company.

• Conductor: Stranded Copper
• Insulation Material: Heat resistive PVC type 1 to BS6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 16.4 mm
• Weight: 390 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: CJH2-07A
