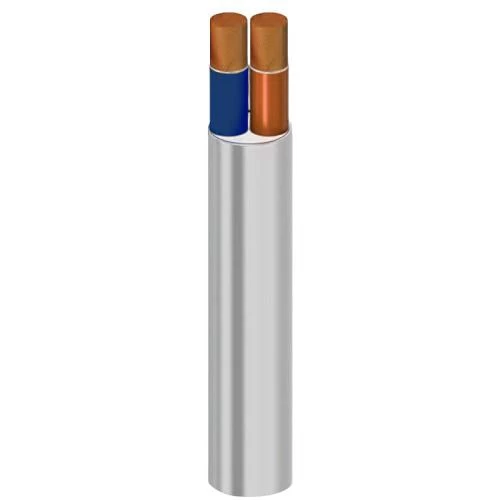

4sq mm 2 Core Cable 300/500V, Flexible Copper Conductor, PVC Insulated and Sheathed | Alfanar

Flexible electrical copper cable 2 core (CU/PVC/PVC), 4 mm2 cross-sectional area, low voltage 300/500V, insulation color (brown, blue), the cables are used in household appliances such as washing machines, refrigerators, and kitchen equipment, as well as in offices and prefabricated homes, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 56
• Wire Diameter: 0.3 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.1 mm
• Overall Diameter: 10.7 mm
• Weight: 200 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue)
• Standard: BS EN 50525-2-11
